P1098N/EA100H

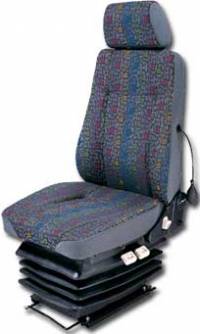

P1098N/EA100H is a driver seat which has pneumatic suspension with hydraulic shock absorber and a 12 V or 24 V compressor. P1098/EA 100H can be used on all kind of buses and lorries with special mounting adapters.

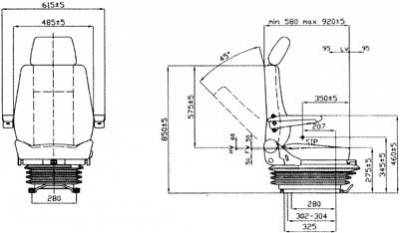

Technical Characteristics
Automatic weight adjustment, up to 130 kg.
Suspension stroke ( 100 mm ).
Height and tilt adjustment ( 60 mm. )
Fore and aft adjustment slides are double locked and stroke is 190 mm.
Backrest reclining at 45°
Connection:
Voltage : 12/24 V
Power input : 96 W
Fuse : 10 A
Options
Pneumatic and mechanical lumbar adjustment.
Adjustable and foldable armrest
Fire retardant cloth ( 95/28/EG-C2 class )
2 point rectable seat belt
3 point rectable seat belt
Heater
Adjustable shock absorber ( from hard to smooth )
Turn Table
Test Reports
76/115/EWG ( 96/38/EG ), Class M3/N3
74/408/EWG ( 96/37/EG ), Class M3
|
