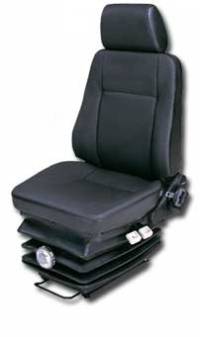

P488B/M80H
P488B/M80H is a driver seat which has mechanical scissors suspension with hydraulic shock absorber and can be used on all kind of buses and lorries with special mounting adapters.
Technical Characteristics

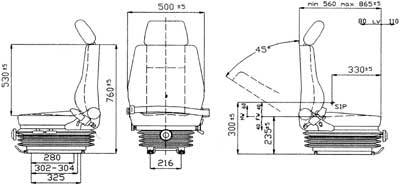

Mechanical weight adjustment, ( from 50 kg to 130 kg )
Suspension stroke ( 80 mm ).
Height and tilt adjustment ( 60 mm. )
Slide fore and aft adjustment is 190 mm
Backrest tilt is 45?
Options
?Pneumatic or mechanical lumbar adjustment.
Adjustable or foldable armrest
Fire retardant cloth ( 95/28/EG-C2 class )
2 point rectable seat belt
3 point rectable seat belt
Heater
Turn table
Test Reports
76/115/EWG ( 96/38/EG ), Class M3/N3
74/408/EWG ( 96/37/EG ), Class M3
|
